Using Multiple Routes

The Gateway plugin can control more than one HTTP routes during a canary. This is a very common scenario if you have micro-services and the same application can be accessed by different routes.

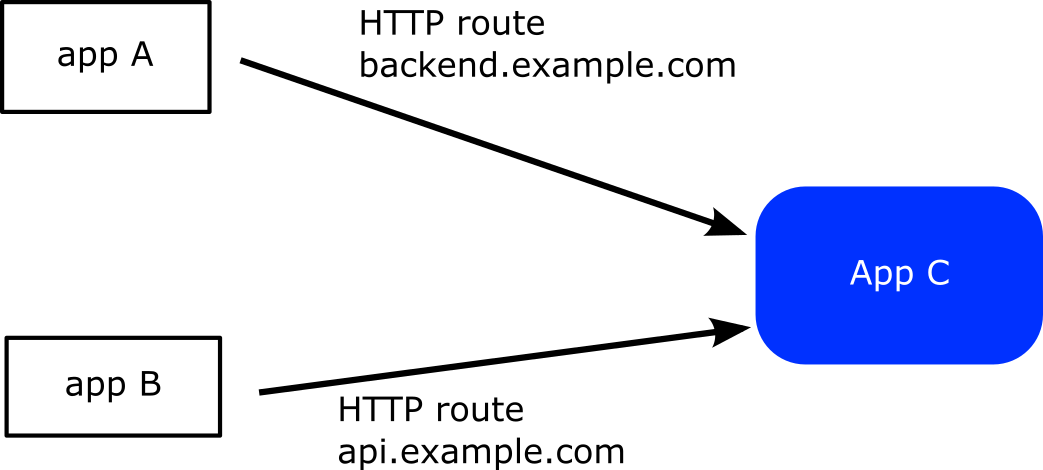

multiple routes

As an example you have application A that uses application C at backend.example.com while application B also depends on C but this time as api.example.com

You want to perform a canary deployment for application C so it is crucial that during the canary both HTTP routes change weights.

First you define the two HTTP routes

---
kind: HTTPRoute
apiVersion: gateway.networking.k8s.io/v1beta1
metadata:
  name: backend-route
  namespace: default
spec:
  parentRefs:
    - name: eg
  hostnames:
    - backend.example.com
  rules:
  - matches:
    - path:
        type: PathPrefix
        value: /
    backendRefs:
    - name: argo-rollouts-stable-service
      kind: Service
      port: 80
    - name: argo-rollouts-canary-service
      kind: Service
      port: 80
---
kind: HTTPRoute
apiVersion: gateway.networking.k8s.io/v1beta1
metadata:
  name: api-route
  namespace: default
spec:
  parentRefs:
    - name: eg
  hostnames:
    - api.example.com
  rules:
  - matches:
    - path:
        type: PathPrefix
        value: /
    backendRefs:
    - name: argo-rollouts-stable-service
      kind: Service
      port: 80
    - name: argo-rollouts-canary-service
      kind: Service
      port: 80

Then in your Rollout definition you use the httproutes property that accepts a list of routes to be controlled.

apiVersion: argoproj.io/v1alpha1
kind: Rollout
metadata:
  name: rollouts-demo
  namespace: default
spec:
  replicas: 5
  strategy:
    canary:
      canaryService: argo-rollouts-canary-service
      stableService: argo-rollouts-stable-service
      trafficRouting:
        plugins:
          argoproj-labs/gatewayAPI:
            httpRoutes:
              - name: backend-route
              - name: api-route
            namespace: default # Optional: defaults to rollout namespace
      steps:
      - setWeight: 10
      - pause: {}
      - setWeight: 50
      - pause: {}
      - setWeight: 100
      - pause: {}
  revisionHistoryLimit: 2
  selector:
    matchLabels:
      app: rollouts-demo
  template:
    metadata:
      labels:
        app: rollouts-demo
    spec:
      containers:
        - name: rollouts-demo
          image: <my-image:my-tag>
          ports:
            - name: http
              containerPort: 8080
              protocol: TCP

If you now start a canary deployment both routes will change to 10%, 50% and 100% as the canary progresses to all its steps.

Working with GitOps controllers

GitOps tools such as Argo CD continuously reconcile Gateway API resources and can revert the weight changes that occur while a canary is progressing. Configure your GitOps policy to ignore those weights.

Argo CD ignoreDifferences

Ignore the weights directly. The expression is unconditional, so Argo CD evaluates it identically against the live object and the desired one.

On an Argo CD Application:

spec:
  ignoreDifferences:
    - group: gateway.networking.k8s.io
      kind: HTTPRoute
      jqPathExpressions:
        - .spec.rules[].backendRefs[].weight

Or globally, through the Argo CD Helm chart:

configs:
  cm:
    resource.customizations.ignoreDifferences.gateway.networking.k8s.io_HTTPRoute: |
      jqPathExpressions:
        - .spec.rules[].backendRefs[].weight

Duplicate the block for GRPCRoute, TCPRoute and TLSRoute if you manage those kinds as well.

This ignores only the weight values, which the plugin owns. Everything else about your rules — matches, backendRef names, hostnames — stays under Argo CD's control.

Automatic Route Discovery with Label Selectors

Instead of explicitly listing each route name, you can use label selectors to automatically discover routes. This is particularly useful when managing many routes or when routes are created dynamically.

Using Label Selectors

You can configure the plugin to discover routes based on their labels:

apiVersion: argoproj.io/v1alpha1
kind: Rollout
metadata:
  name: rollouts-demo
  namespace: default
spec:
  replicas: 5
  strategy:
    canary:
      canaryService: argo-rollouts-canary-service
      stableService: argo-rollouts-stable-service
      trafficRouting:
        plugins:
          argoproj-labs/gatewayAPI:
            httpRouteSelector:
              matchLabels:
                app: my-app
                canary-enabled: "true"
            namespace: default # Optional: defaults to rollout namespace
      steps:
      - setWeight: 10
      - pause: {}
      - setWeight: 50
      - pause: {}
      - setWeight: 100
      - pause: {}
  # ... rest of rollout spec

With this configuration, the plugin will automatically discover and manage all HTTPRoutes in the namespace that have the labels app: my-app and canary-enabled: true.

Labeling Your Routes

To use label selectors, add appropriate labels to your routes:

---
kind: HTTPRoute
apiVersion: gateway.networking.k8s.io/v1beta1
metadata:
  name: backend-route
  namespace: default
  labels:
    app: my-app
    canary-enabled: "true"
spec:
  # ... route specification
---
kind: HTTPRoute
apiVersion: gateway.networking.k8s.io/v1beta1
metadata:
  name: api-route
  namespace: default
  labels:
    app: my-app
    canary-enabled: "true"
spec:
  # ... route specification

Combining Explicit Routes and Selectors

You can combine both approaches - explicitly named routes and label selectors:

trafficRouting:
  plugins:
    argoproj-labs/gatewayAPI:
      httpRoutes:
        - name: critical-route  # Explicitly managed
      httpRouteSelector:        # Plus all routes matching this selector
        matchLabels:
          auto-discover: "true"
      namespace: default # Optional: defaults to rollout namespace

Selector Types

The plugin supports selectors for different route types:

  • httpRouteSelector: Discovers HTTPRoutes
  • grpcRouteSelector: Discovers GRPCRoutes
  • tcpRouteSelector: Discovers TCPRoutes

You can use multiple selectors simultaneously:

trafficRouting:
  plugins:
    argoproj-labs/gatewayAPI:
      httpRouteSelector:
        matchLabels:
          protocol: http
      grpcRouteSelector:
        matchLabels:
          protocol: grpc
      namespace: default # Optional: defaults to rollout namespace

Advanced Selectors

You can use more complex label selectors with match expressions:

httpRouteSelector:
  matchLabels:
    app: my-app
  matchExpressions:
  - key: environment
    operator: In
    values: ["production", "staging"]
  - key: team
    operator: Exists

This selector will match routes that: - Have the label app: my-app - Have an environment label with value production or staging - Have any team label (regardless of value)

Verifying Route Discovery

To verify which routes will be discovered by your selector, use kubectl:

kubectl get httproutes -n default -l app=my-app,canary-enabled=true

The plugin logs discovered routes during reconciliation, which can help with debugging.
